Bi-harmonic diffusion to smooth weight maps over meshes.

Research

[  C++ code ] for the experiment.

Goal: diffuse weight maps by using one or several steps of Jacobi iterations to solve the Biharmonic equation. For now I could solve using the bilaplacian L*M^-1*L operator with a sparse LU solver (note: Biharmonic functions minimize Laplacian energy). Trying to use Jacobi iterations doesn't really produce the results I was expecting. Mainly I have 3 problems:

• I don't converge unless I use an aggressive dampling with t = 0.6 to LERP between old and new values of one iteration of Jacobi.

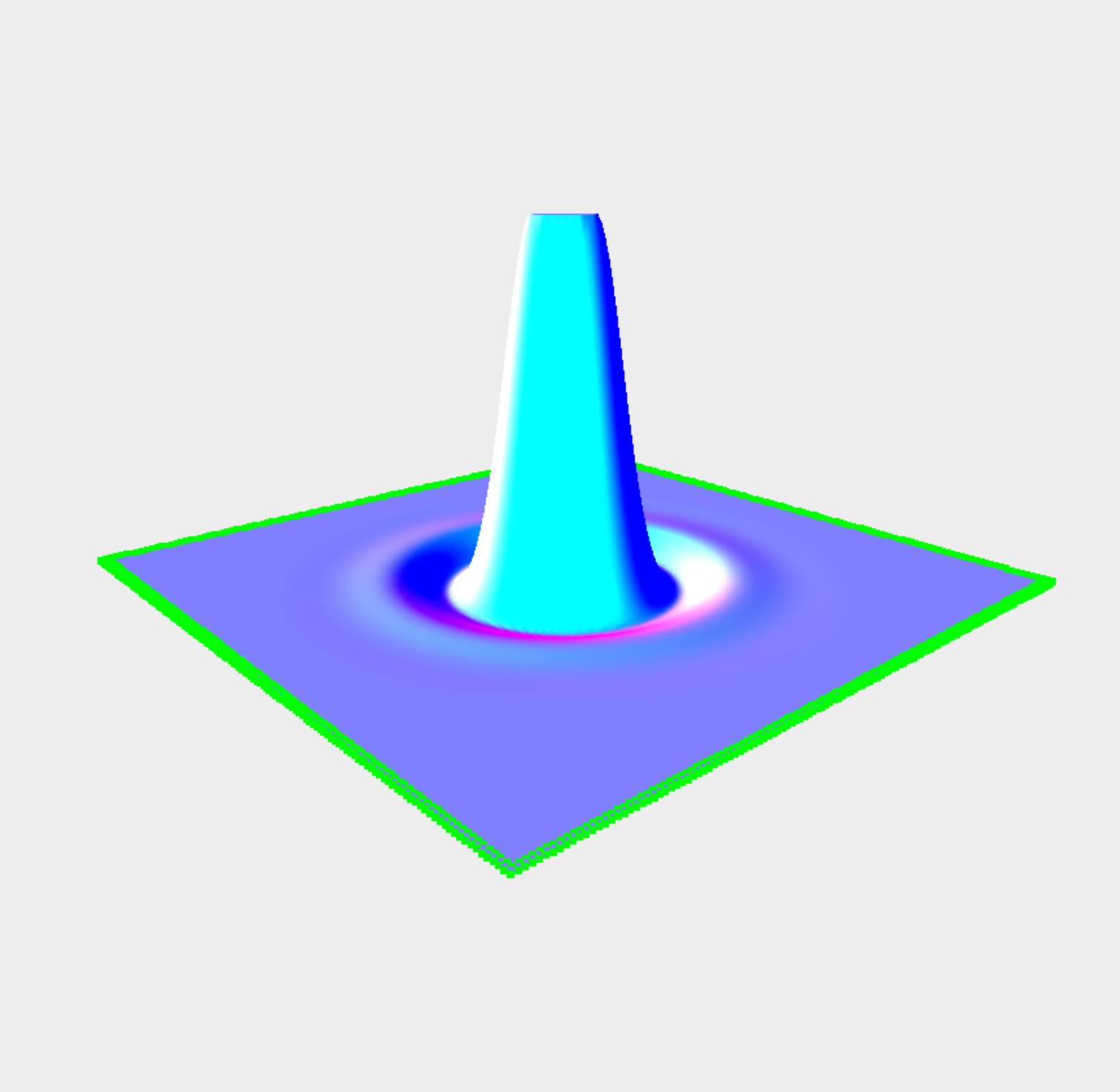

• The results of this diffusion by Jacobi oscillate (produces slightly negative weights)
• deformation is C0 on boundaries :/

Future work

Maybe the non negativity constraints in Alec's papers (bounding biharmonic weights) can help ?
There is also this paper: Multiscale Biharmonic kernels (Eurographics Raif M. Rustamov) to explore.
