C++ code for cotangent weights over a triangular mesh

$$w_{ij} = \cot(\alpha_{ij}) + \cot(\beta_{ij})$$

Here is some code to compute the cotangent weights described in the article Discrete Differential-Geometry Operators for Triangulated 2-Manifolds. Cotan weights are the most popular expression of the discreete Laplacian operator on triangle meshes. Cotangent weights have many application such as mesh smoothing, computing harmonic weights over a mesh, or diffusing values on its surface. I'm leaving this here for other tutorial to reference.

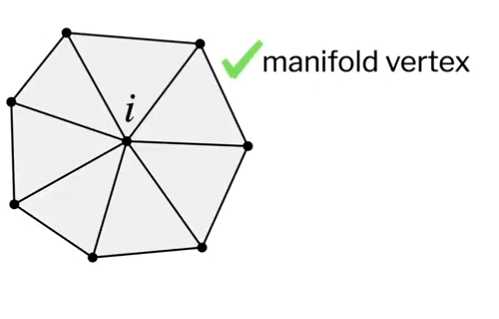

A cotangent weight can be thought as barycentric weights, for every vertex \( i \) we associate the weights to each of its direct neighbor \( j \). The code below does not compile but hopefully it can serve as a reference to adapt it to your own project. The code below also handles cotangent weights at the boundaries of the mesh.

struct Mesh {

    /// For every vertex, a list of direct (1st ring) neighbors.
    /// first_ring[index_vertex].size() == number of direct neighbors to 'index_vertex'
    /// first_ring[index_vertex][ith_neighbor] == neighbor_index
    std::vector< std::vector<Vert_idx> > first_ring();

    Vec3 vertex(Vert_idx idx) const { return _vertices[idx]; }
    int nb_vertices() const { return (int)_vertices.size(); }

    std::vector<Vec3> _vertices;
};

// -----------------------------------------------------------------------------

void laplacian_cotan_weights(const Mesh& m,
                             std::vector< std::vector >& per_edge_cotan_weights)
{
    int nb_verts = m.geom().nb_vertices();
    per_edge_cotan_weights.resize( nb_verts );
    for(int vertex_i = 0; vertex_i < nb_verts; ++vertex_i)
    {
        const int nb_neighs = (int)m.first_ring()[vertex_i].size();
        per_edge_cotan_weights[vertex_i].resize( nb_neighs );
        for(int edge_j = 0; edge_j < nb_neighs; ++edge_j)
        {
            float wij = laplacian_positive_cotan_weight(m, vertex_i, edge_j);
            per_edge_cotan_weights[vertex_i][edge_j] = wij;
        }
    }
}

// -----------------------------------------------------------------------------

float cotan(const Vec3& a, const Vec3& b){
    return a.dot(b)) / (a.cross(b)).norm();
}

// -----------------------------------------------------------------------------

/// compute the cotangent weight for the edge (v_i, v_j)
float laplacian_cotan_weight(const Mesh& m,
                             Vert_idx vertex_i,
                             int edge_j )
{
    int nb_neighs = (int)m.first_ring()[vertex_i].size();

    Vert_idx vertex_j      = m.first_ring()[vertex_i][  edge_j ];
    Vert_idx vertex_j_next = m.first_ring()[vertex_i][ (edge_j+1) % nb_neighs ];
    Vert_idx vertex_j_prev = m.first_ring()[vertex_i][ (edge_j-1) >= 0 ? (edge_j-1) : nb_neighs-1 ];

    Vec3 v1 = m.vertex(vertex_i) - m.vertex(vertex_j_prev);
    Vec3 v2 = m.vertex(vertex_j) - m.vertex(vertex_j_prev);
    Vec3 v3 = m.vertex(vertex_i) - m.vertex(vertex_j_next);
    Vec3 v4 = m.vertex(vertex_j) - m.vertex(vertex_j_next);

    float cotan_alpha = cotan(v1, v2);
    float cotan_beta  = cotan(v3, v4);

    // If the mesh is not a water-tight closed volume
    // we must check for edges lying on the sides of wholes
    if(m.is_vert_on_side(vertex_i) && m.is_vert_on_side(vertex_j))
    {
        // boundary edge, only have one such angle
        if( vertex_j_next == vertex_j_prev )
        {
            // two angles are the same, e.g. corner of a square
            cotan_beta = 0.0f;
            // Note this case should be avoided by flipping the edge of the
            // triangle...
        }
        else
        {
            // find the angle not on the boundary
            if( m.is_vert_on_side(vertex_i) && m.is_vert_on_side(vertex_j_next) )
                cotan_beta = 0.0;
            else
                cotan_alpha = 0.0f;
        }
    }

    float wij = (cotan_alpha + cotan_beta)/* / 2.0f*/;

    if( isnan(wij) ){
        wij = 0.0f;
    }
    // compute the cotangent value close to 0.0f and pi.
    // as cotan approaches infinity close to those values
    // we clamp.
    const float eps = 1e-6f;
    const float cotan_max = cos( eps ) / sin( eps );
    wij = clampf(wij, -cotan_max, cotan_max);

    return wij;
}

Note recall that: \( \cot( \theta ) = \frac{\cos \theta}{\sin \theta} =\frac{\vec u . \vec v}{ \vec u \times \vec v} = \frac{\||\vec u\||.\||\vec v\|| cos(\theta) }{\||\vec u\||.\||\vec v\|| sin(\theta)} \)

Note that sometimes cotangent weights can be negative and causes instabilities for certain configurations of triangle meshes depending on your algorithm (For instance gradient descent that won't converge correctly).

Here is an alternate implementation of the cotangent weights where the absolute value of \( cos(\alpha) \) and \( sin(\beta) \) which results in positive cotangent weights:

float laplacian_positive_cotan_weight(const Mesh& m,
                                      Vert_idx vertex_i,
                                      int edge_j )
{
    const int nb_neighs = (int)m.first_ring()[vertex_i].size();

    Vert_idx vertex_j      = m.first_ring()[vertex_i][  edge_j ];
    Vert_idx vertex_j_next = m.first_ring()[vertex_i][ (edge_j+1) % nb_neighs                     ];
    Vert_idx vertex_j_prev = m.first_ring()[vertex_i][ (edge_j-1) >= 0 ? (edge_j-1) : nb_neighs-1 ];

    Vec3 pi      = m.vertex(vertex_i);
    Vec3 pj      = m.vertex(vertex_j);
    Vec3 pj_prev = m.vertex(vertex_j_prev);
    Vec3 pj_next = m.vertex(vertex_j_next);

    float e1 = (pi      - pj     ).norm();
    float e2 = (pi      - pj_prev).norm();
    float e3 = (pj_prev - pj     ).norm();
    // NOTE: cos(alpha) = (a^2.b^2  - c^2) / (2.a.b)
    // with a, b, c the lengths of of the sides of the triangle and (a, b)
    // forming the angle alpha.
    float cos_alpha = fabs((e3*e3 + e2*e2 - e1*e1) / (2.0f*e3*e2));

    float e4 = (pi      - pj_next).norm();
    float e5 = (pj_next - pj     ).norm();
    float cos_beta = fabs((e4*e4 + e5*e5 - e1*e1) / (2.0f*e4*e5));

    // NOTE: cot(x) = cos(x)/sin(x)
    // and recall cos(x)^2 + sin(x)^2 = 1
    // then sin(x) = sqrt(1-cos(x))
    float cotan1 = cos_alpha / sqrt(1.0f - cos_alpha * cos_alpha);
    float cotan2 = cos_beta  / sqrt(1.0f - cos_beta  * cos_beta );

    // If the mesh is not a water-tight closed volume
    // we must check for edges lying on the sides of wholes
    if(m.is_vert_on_side(vertex_i) && m.is_vert_on_side(vertex_j))
    {
        if( vertex_j_next == vertex_j_prev )
        {
            cotan2 = 0.0f;
        } else {
            if( m.is_vert_on_side(vertex_i) && m.is_vert_on_side(vertex_j_next) )
                cotan2 = 0.0;
            else
                cotan1 = 0.0f;
        }
    }

    // wij = (cot(alpha) + cot(beta))
    float wij = (cotan1 + cotan2) / 2.0f;

    if( isnan(wij) ){
        wij = 0.0f;
    }
    // compute the cotangent value close to 0.0f.
    // as cotan approaches infinity close to zero we clamp
    // higher values
    const float eps = 1e-6f;
    const float cotan_max = cos( eps ) / sin( eps );
    if(wij >= cotan_max ){
        wij = cotan_max;
    }

    return wij;
}

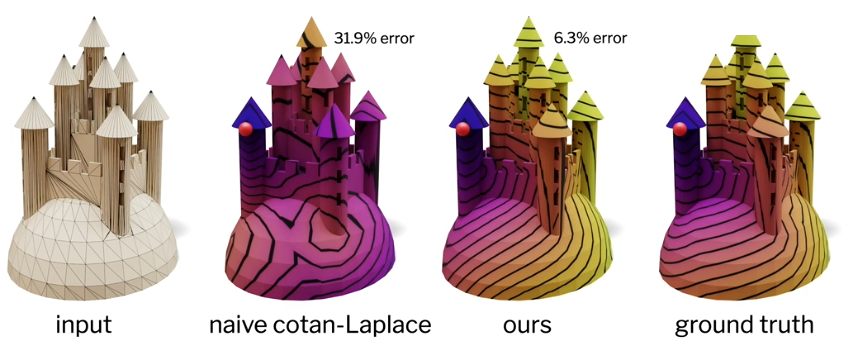

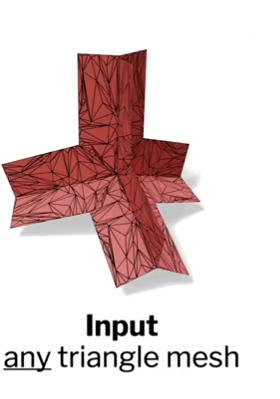

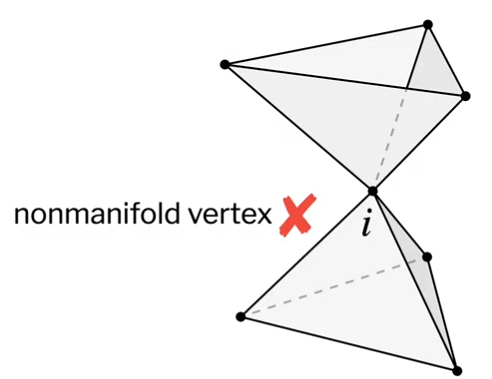

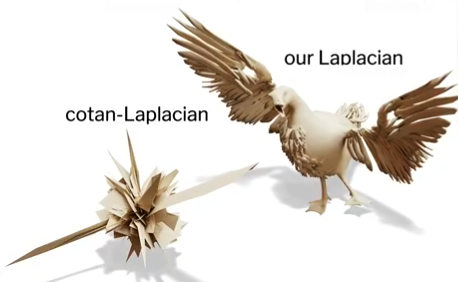

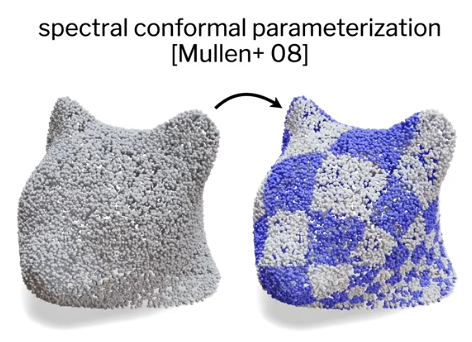

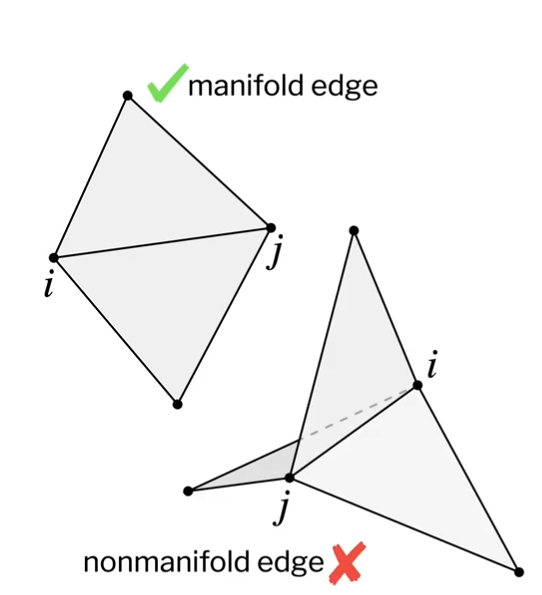

Some other references making use of cotangent weights:
